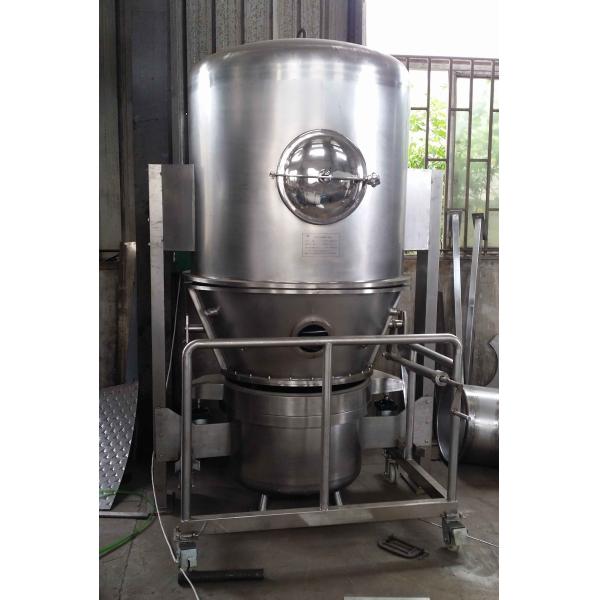

PLC Control System Pharmaceutical Dryers Boiling Drying Machine With Simple Operation
Quick Detail:
Capacity of material bucket(L): 330
Production capacity(kgbatch): 20-100
Temperature of inlet air (℃): indoor ～150℃ adjusting
Pressure(r/min): 0.4
Consumption(kg/h): 210
Weight of main body(kg): 1470
Model: GFG-100
Description:
The structure of fluidization bed is round so as to avoid dead corner;
Inside the hopper there is a srirrer in order to aviod agglomeration of raw material and forming canal of flow;
The granule is discharged through the method of turning over. In this way it is very convenient and full. The discharging system can be designed as request too;
It is operated at the conditions of negative pressure and seal. The air is filtered.
Therefore it is simple in operation and convenient in cleaness. It is an ideal equipment that is conformity with the requirement of GMP.
The drying speed is fast and the temperature is uniform. In general, the drying time is 15-45 minutes each batch.
Applications:
Use screw to sxtrude and vibrate granule and granulate with the method humidity, high speed and mixing;
Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries and so on.
Specifications:
| GFG-100 Main Technical Parameters |
| Model | GFG-100 |
| Item |
| Capacity of material bucket(L) | 330 |
| Production capacity(kgbatch) | 20-100 |
| Temperature of inlet air (℃) | indoor ～150℃ adjusting |
| Blower Fan | Air volume(M3/h) | 3620 |
| Air pressure(pa) | 7110 |
| Power of Motor(kw) | 11 |
| Blending Motor | Revolving Speed(r/min) | 12 |
| Power of Motor(kw) | 1.5 |
| Steam | Pressure(r/min) | 0.4 |
| Consumption(kg/h) | 210 |
| Compressed air | Pressure(r/min) | 0.5 |
| Consumption(kg/h) | 210 | |
| Weight of main body(kg) | 1470 |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
